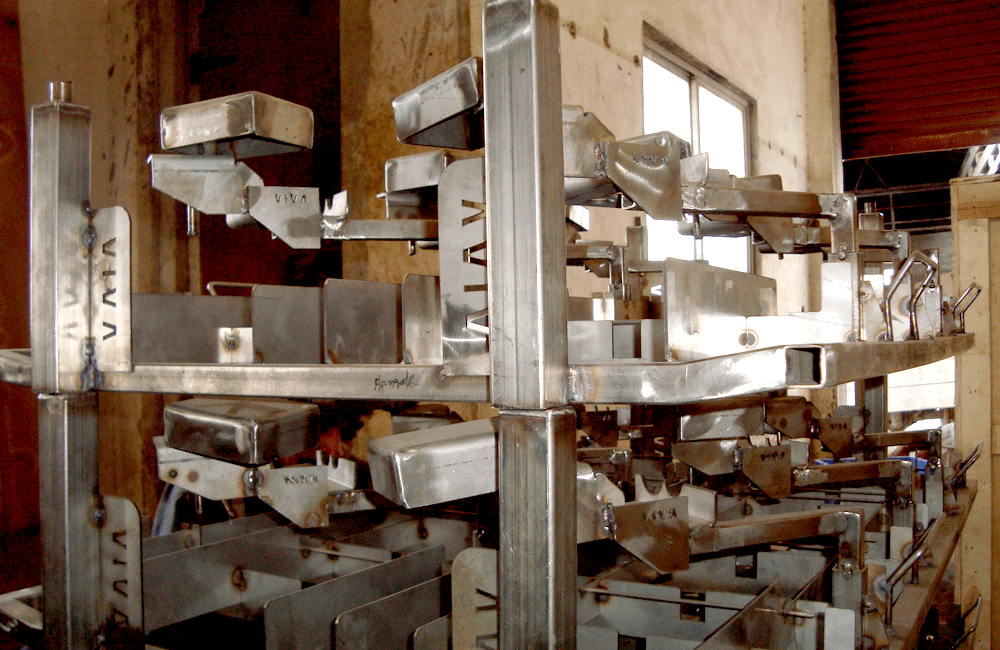

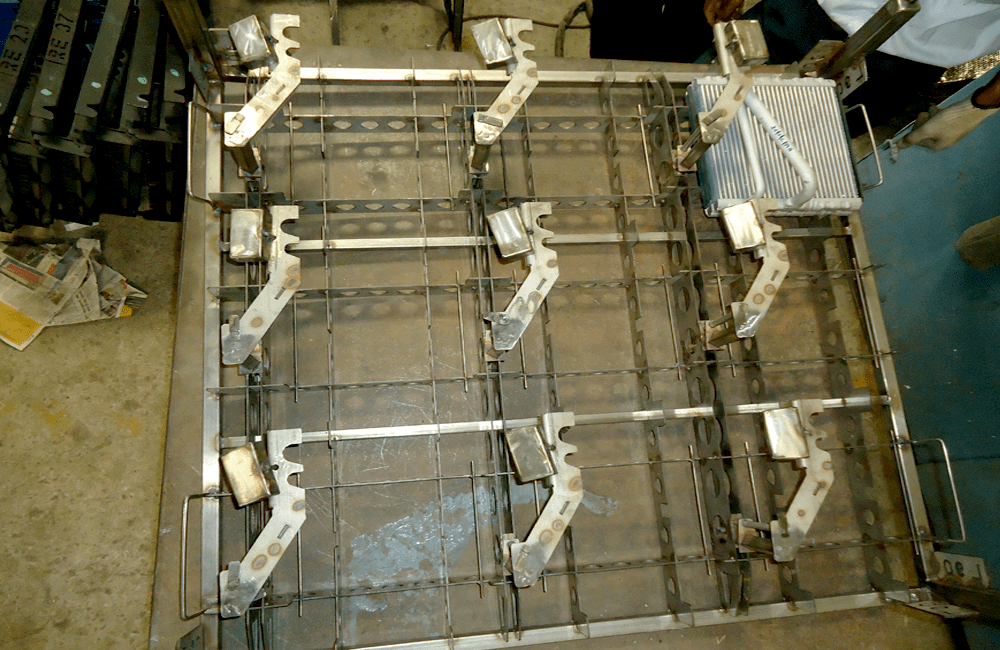

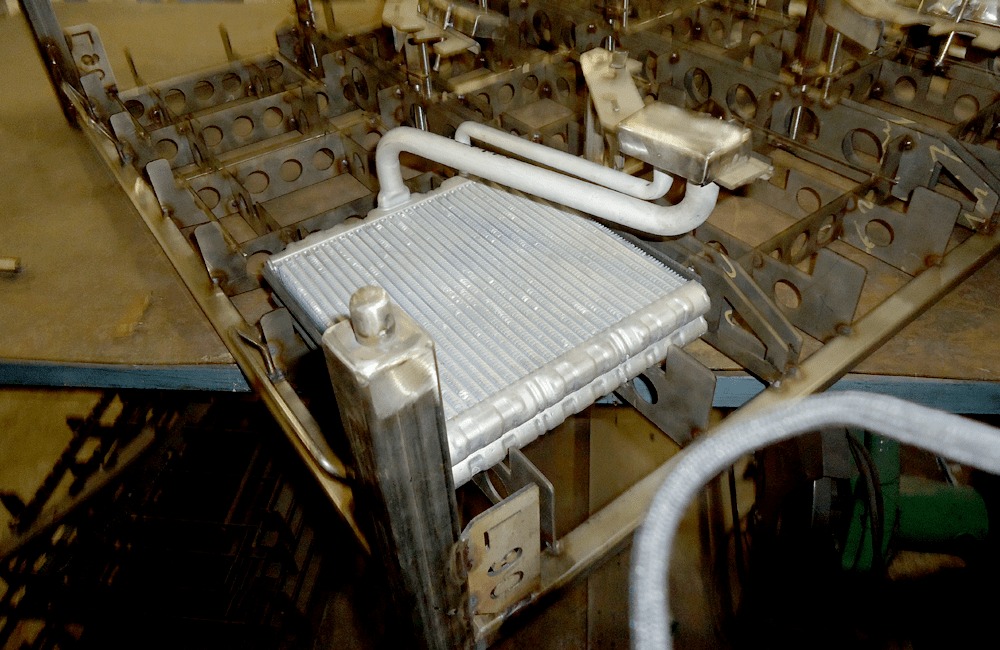

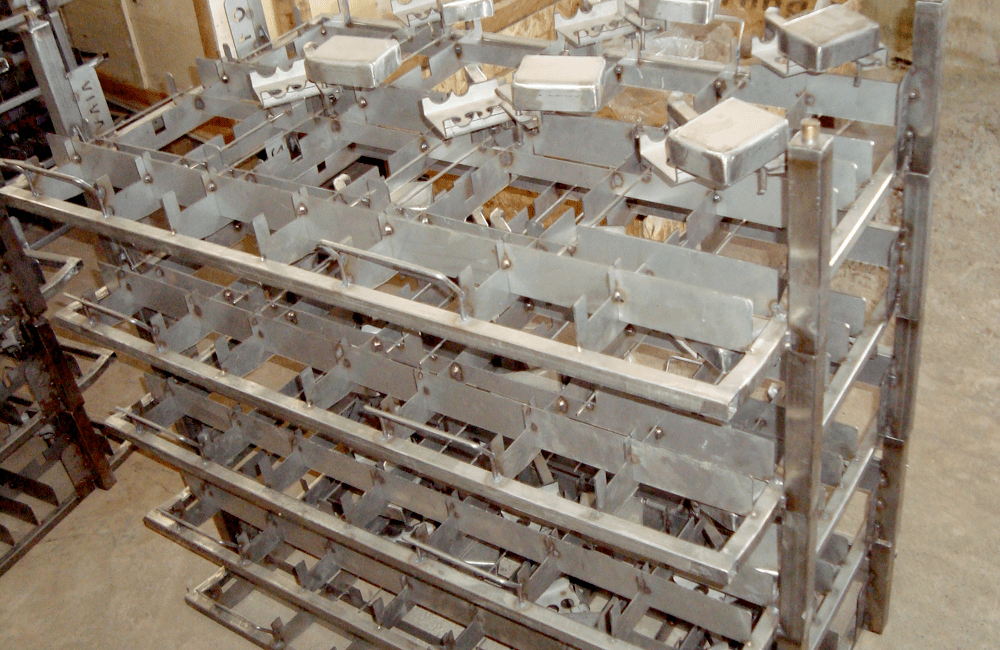

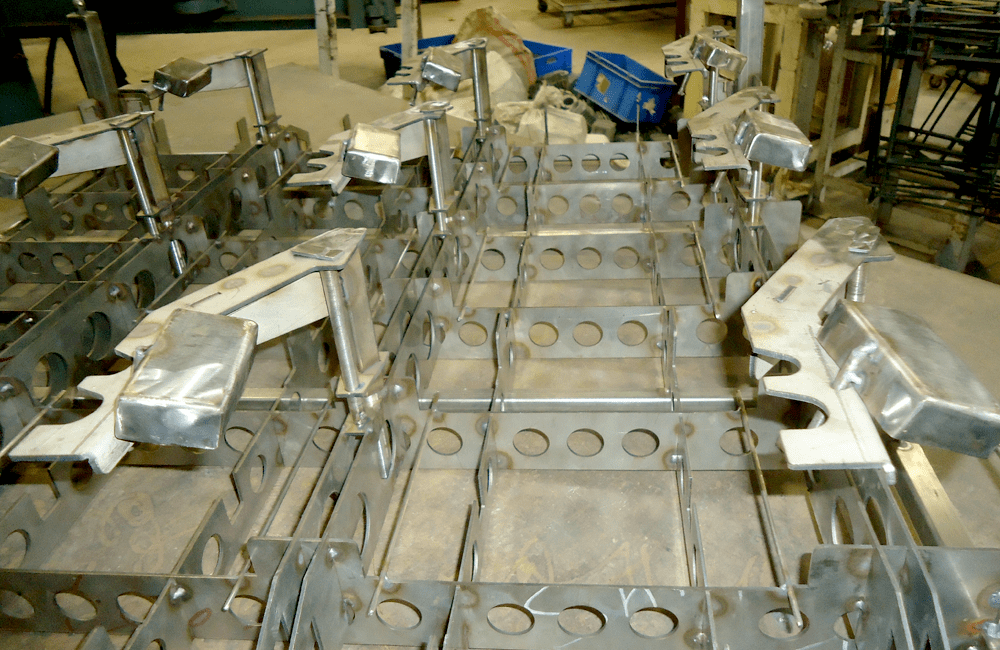

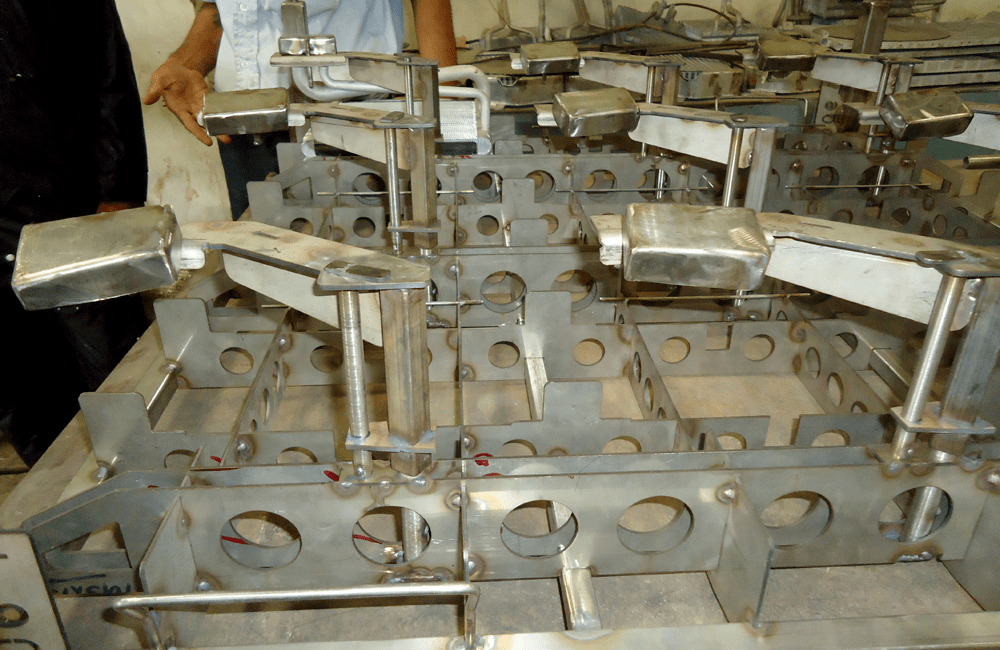

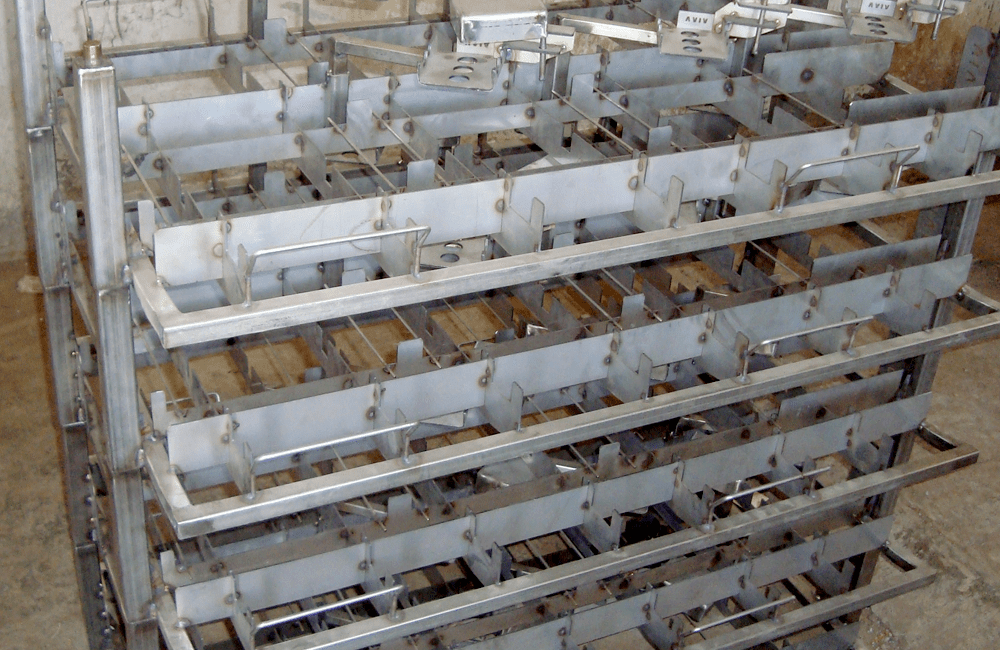

Brazing frames are clamping devices made of high quality stainless steel, which hold the proper hold aluminium tubes, fins, and child parts
together before brazing in its individual parts.
These brazing frames are used in furnace brazing, which has to pass through tempreture range from 590℃ - 620℃ during each pass. In this context tense radiator and condenser, aluminium blocks go through in the brazing process, a special brazing oven at very high temperatures. The high-quality manufacturing quality guarantees a high stability of the clamping frames even for sizes over 1300x1000 mm and thus the best sustainability for many brazing cycles.
Brief description in general:
These brazing frames are used in furnace brazing, which has to pass through tempreture range from 590℃ - 620℃ during each pass. In this context tense radiator and condenser, aluminium blocks go through in the brazing process, a special brazing oven at very high temperatures. The high-quality manufacturing quality guarantees a high stability of the clamping frames even for sizes over 1300x1000 mm and thus the best sustainability for many brazing cycles.
Brief description in general:
- Material: stainless steel 304, 304L, 316, 310L
- Laser cut and engraved
- Precisely CNC-edged
- Use of nimonic L90 springs or wire
- Welded with exotically positioned welding tags.
- Partially with spring loaded jaws (Nimonic)
- Surface treated (nitrided)
- Calibrated with special manufactured gauges
